External Halyard Flagpoles
MATERIAL
- ASTM B241 Cone Tapered Alloy 6063-T6 Seamless Aluminum
STANDARD EQUIPMENT
- Gold Anodized Aluminum Ball
- Single Sheave Revolving Truck
- Solid Braid Nylon Halyard
- Bronze Swivel Snap Hooks
- 9″ Cast Aluminum Cleat w/ S.S. Screws
- Spun Aluminum Flash Collar
- Corrugated Steel Ground Sleeve
STANDARD FINISH
- Directional Textured Mechanical Polished Satin Brush Per AA M32

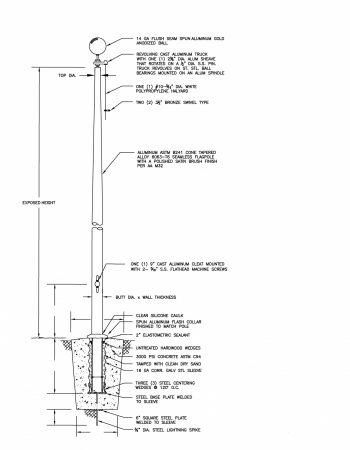

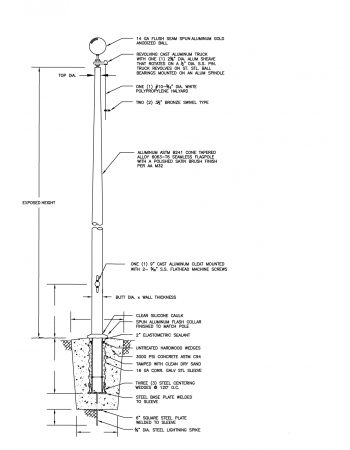

External Halyard Flagpoles consist of the rigging system being located on the outside of the flagpole. A rope runs up the shaft of the flagpole to a truck assembly located at the top, where it passes through a pulley. The rope then returns back down the shaft to be tied off to an external cleat typically located 4 ½’ above grade. External truck assemblies can be stationary or revolving. The revolving truck is available with a single pulley or double pulley. A single revolving external halyard flagpole is the Industry Standard.
| Model # | Overall Height | Exposed Height | Bottom Diameter | Top Diameter | Wall Thickness | Shipping Sections | Pole Weight |
|---|---|---|---|---|---|---|---|
| PT205A | 22′ | 20′ | 5” | 3” | .125″ | 1 | 48 |
| PT205B | 22′ | 20′ | 5” | 3” | .156″ | 1 | 62 |
| PT205C | 22′ | 20′ | 5” | 3” | .188″ | 1 | 74 |
| PT205D | 22′ | 20′ | 5” | 4” | .250″ | 1 | 97 |
| PT206C | 22′ | 20′ | 6” | 4” | .188″ | 1 | 89 |
| PT255.5C | 28′ | 25′ | 5 ½” | 3” | .188″ | 1 | 98 |
| PT255A | 28′ | 25′ | 5” | 3” | .125″ | 1 | 61 |
| PT255B | 28′ | 25′ | 5” | 3” | .156″ | 1 | 77 |
| PT255C | 28′ | 25′ | 5” | 3” | .188″ | 1 | 92 |
| PT256B | 27′ | 25′ | 6” | 3” | .156″ | 1 | 96 |
| PT256C | 28′ | 25′ | 6” | 3” | .188″ | 1 | 110 |
| PT256D | 28′ | 25′ | 6” | 4” | .250″ | 1 | 146 |
| PT257C | 28′ | 25′ | 7” | 4” | .188″ | 1 | 130 |
| PT305B | 33′ | 30′ | 5” | 3” | .156″ | 1 | 92 |
| PT305C | 33′ | 30′ | 5” | 3” | .188″ | 1 | 110 |
| PT306B | 33′ | 30′ | 6” | 3” | .156″ | 1 | 112 |
| PT306C | 33′ | 30′ | 6” | 3” | .188″ | 1 | 133 |
| PT306D | 33′ | 30′ | 6” | 4” | .250″ | 1 | 175 |
| PT307C | 33′ | 30′ | 7” | 4” | .188″ | 1 | 158 |
| PT356B | 38 ½’ | 35′ | 6” | 3” | .156″ | 1 or 2 | 130 |
| PT356C | 38 ½’ | 35′ | 6” | 3” | .188″ | 1 or 2 | 156 |
| PT357B | 38 ½’ | 35′ | 7” | 3” | .156″ | 1 or 2 | 152 |
| PT357C | 38 ½’ | 35′ | 7” | 3” | .188″ | 1 or 2 | 182 |
| PT358C | 38 ½’ | 35′ | 8” | 4” | .188″ | 1 or 2 | 208 |
| PT358D | 38 ½’ | 35′ | 8” | 4” | .188″ | 1 or 2 | 276 |
| PT4010C | 44′ | 40′ | 10” | 4” | .188″ | 2 | 283 |
| PT407B | 44′ | 40′ | 7” | 3” | .156″ | 2 | 188 |
| PT407C | 44′ | 40′ | 7” | 3” | .188″ | 2 | 220 |
| PT408B | 44′ | 40′ | 8” | 3” | .156″ | 2 | 215 |
| PT408C | 44′ | 40′ | 8” | 3” | .188″ | 2 | 238 |
| PT408D | 44′ | 40′ | 8” | 4” | .250″ | 2 | 293 |
| PT4510C | 49′ | 45′ | 10” | 3” | .188″ | 2 | 340 |
| PT4510D | 49′ | 45′ | 10” | 4” | .250″ | 2 | 315 |
| PT458C | 49′ | 45′ | 8” | 3” | .188″ | 2 | 274 |
| PT5010C | 55′ | 50′ | 10” | 3” | .188″ | 2 | 380 |
| PT5010D | 55′ | 50′ | 10” | 4” | .250″ | 2 | 437 |
| PT508C | 55′ | 50′ | 8” | 3” | .188″ | 2 | 301 |
| PT6010C | 66′ | 60′ | 10” | 3” | .188″ | 3 | 472 |
| PT6010D | 66′ | 60′ | 10” | 3” | .250″ | 3 | 605 |
| PT6012D | 66′ | 60′ | 12” | 3” | .250″ | 3 | 730 |
| PT6012E | 66′ | 60′ | 12” | 4” | .375″ | 3 | 754 |
| PT7010DE | 77′ | 70′ | 10” | 3” | .312″ | 3 | 855 |
| PT7012D | 77′ | 70′ | 12” | 3” | .250″ | 3 | 855 |
| PT7012E | 77′ | 70′ | 12” | 4” | .375″ | 3 | 930 |
| PT7512E | 82 ½’ | 75′ | 12” | 3” | .375″ | 4 | 920 |
| PT8012E | 88′ | 80′ | 12” | 3” | .375″ | 4 | 1026 |
| PT8012F | 88′ | 80′ | 12” | 4” | .500″ | 4 | 1090 |
| PT9012F | 99′ | 90′ | 12” | 3” | .500″ | 4 or 5 | 1400 |
| PT10016F | 110′ | 100′ | 16” | 4” | .500″ | 4 or 5 | 2400 |
