Residential Flagpoles
MATERIAL
- Cone Tapered 6063-T6 Seamless Extruded Aluminum
STANDARD EQUIPMENT
- Gold Anodized Aluminum Ball
- Cast Aluminum Stationary Truck
- White Nylon Halyard
- (2) Nylon Snaphooks
- 6″ Cast Aluminum Cleat w/ (2) S.S. Screws
- PVC Ground Sleeve
STANDARD FINISH
- Directional Textured Mechanical Satin Brush, AA-M32
Residential Ground Set Flagpoles
| Model # | Overall Height | Exposed Height | Bottom Diameter | Top Diameter | Wall Thickness | Shipping Sections | Pole Weight | Mph 70 | Mph 80 | Mph 90 | Mph 100 | Mph 110 | Max Mph |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PT153A | 16 ½’ | 15′ | 3″ | 2″ | .125″ | 1 | 20 | 3′ x 5′ | 3′ x 5′ | 3′ x 5′ | 3′ x 5′ | 3′ x 5′ | 145 |
| PT203A | 22′ | 20′ | 3″ | 2″ | .125″ | 1 | 30 | 4′ x 6′ | 4′ x 6′ | – | – | – | 105 |
| PT204A | 22′ | 20′ | 4″ | 2″ | .125″ | 1 | 45 | 4′ x 6′ | 4′ x 6′ | 4′ x 6′ | 3′ x 5′ | – | 140 |
| PT253A | 28′ | 25′ | 3″ | 2″ | .125″ | 1 | 50 | 4′ x 6′ | – | – | – | – | 80 |
| PT254A | 28′ | 25′ | 4″ | 2″ | .125″ | 1 | 55 | 5′ x 8′ | 4′ x 6′ | – | – | – | 100 |
| PT305A | 33′ | 30′ | 5″ | 3″ | .125″ | 2 | 75 | 5′ x 8′ | 5′ x 8′ | 4′ x 6′ | – | – | 105 |

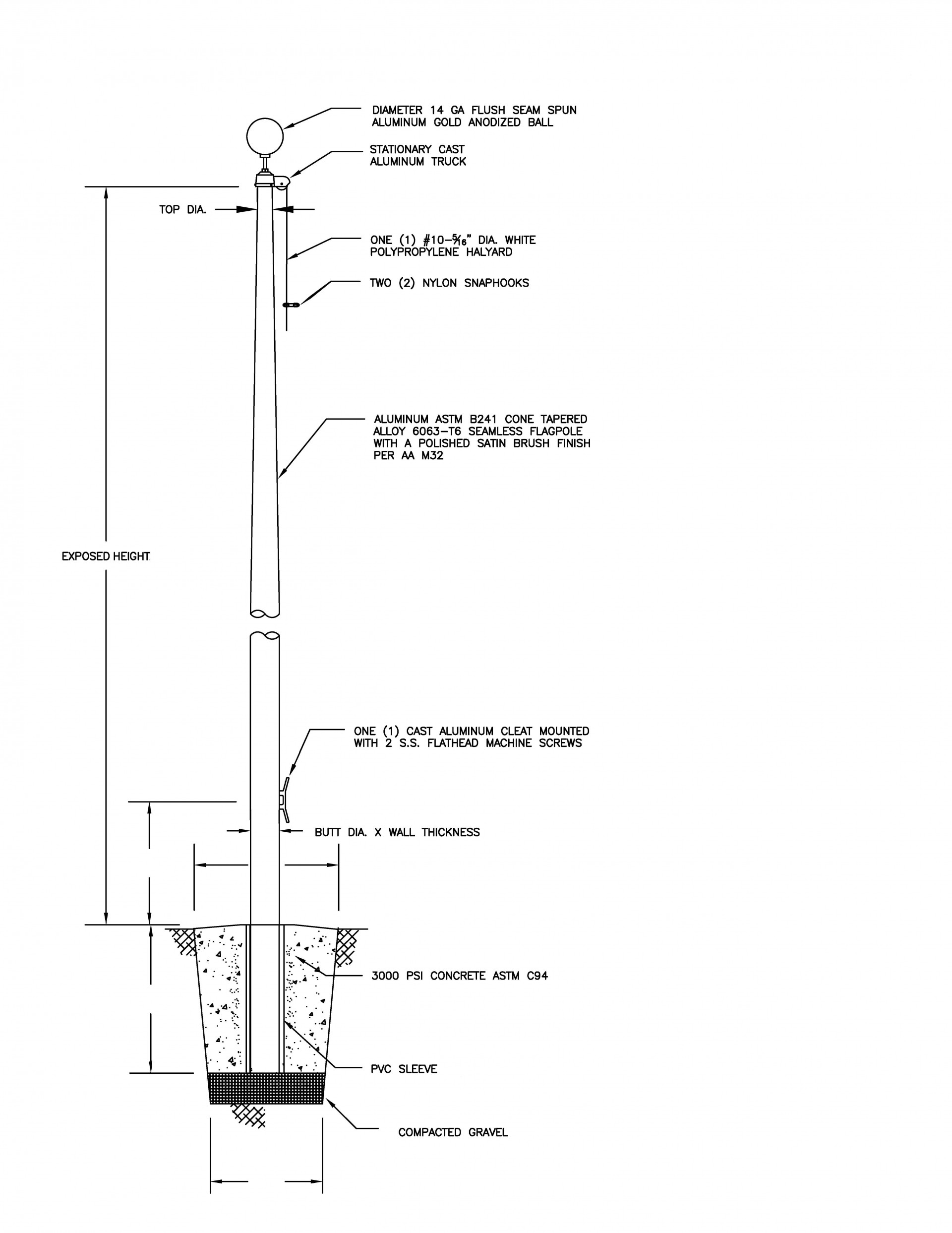

| FLAGPOLE | A | B | C | D |
|
|---|---|---|---|---|---|
| Exposed Height | Overall Height | Pole Butt Diameter | Sleeve Length | Foundation Width at Top | Foundation Width at Bottom |
| 15′ | 16 ½’ | 3″ | 18″ | 18″ | 16″ |
| 20′ | 22′ | 3″ or 4″ | 24″ | 18″ | 16″ |
| 25′ | 27 ½’ | 3″ or 4″ | 30″ | 18″ | 16″ |
| 25′ | 27 ½’ | 5″ | 30″ | 30″ | 24″ |
| 30′ | 33′ | 4″ | 36″ | 30″ | 24″ |
| 30′ | 33′ | 5″ | 36″ | 36″ | 30″ |
