Stainless Steel Flagpoles

Home / Products / Flagpoles / STAINLESS STEEL ALLOY

MATERIAL

  • Stainless Steel – 316 Alloy

STANDARD EQUIPMENT

  • Stainless Steel Ball – 1/2″ Rod
  • Single Sheave Revolving Truck
  • Solid Braid Nylon Halyard
  • Stainless Steel Snap Hooks
  • Neoprene Snap Covers
  • Stainless Steel Cleat w/ S.S. Screws
  • Stainless Steel Flash Collar
  • Corrugated Steel Ground Sleeve

STANDARD FINISH

  • Satin Brush Finish (AISI #4)
  • (Also Available) Mirror Finish (AISI #7)

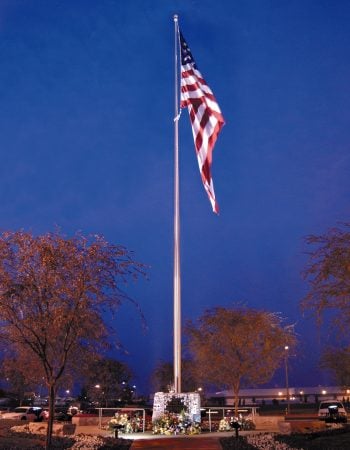

Stainless Steel Flagpole-100'-Cone-Tapered-Pelco
Request Quote

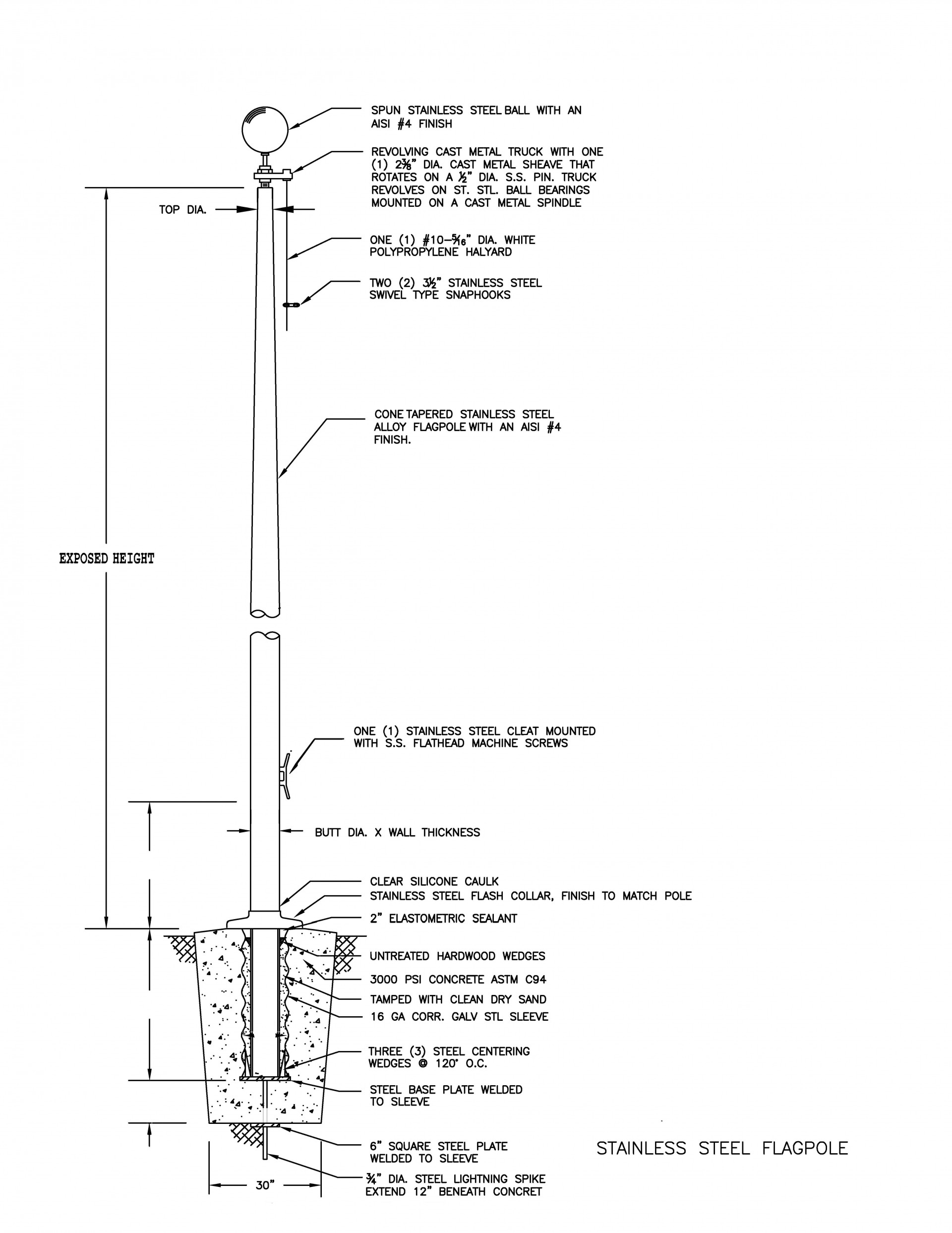

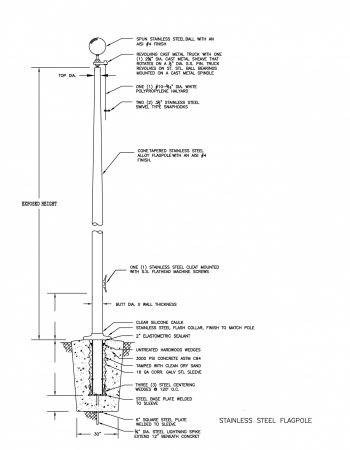

Stainless Steel Ground Set Flagpole Drawing
Download Drawing
Exposed HeightOverall HeightDiameterWall
Thickness		LengthBall DiameterSectionsFlag Size
ButtTopTaperStraight
20′22′5-9/16″3 ¼”.188″16 ½”5 ½”5″14′ x 6′
25′28′5-9/16″3 ¼”.188″16 ½”11′5″14′ x 6′
30′33′6 ⅝”3 ¼”.188″24′9′6″15′ x 8′
35′38 ½”6 ⅝”3 ¼”.188″24′14 ½”6″15′ x 8′
40′44′6 ⅝”3 ¼”.280″24′20′8″26′ x 10′
50′55′8 ⅝”4″.322″38 ½”16 ½”8″28′ x 12′
60′66′8 ⅝”4″.322″38 ½”27 ½”8″210′ x 15′
70′77′10 ¾”4″.365″48′29′10″212′ x 18′
80′88′12 ¾”4″.375″62 ½”25 ½”12″315′ x 25′
90′99′12 ¾”4″.375″62 ½”36 ½”14″315′ x 25′
100′110′12 ¾”4″.500″62 ½”47 ½”16″315′ x 25′

Stainless Steel – 316 Alloy with a Satin Brush Finish (AISI #4)

  • Also available in an AISI #7 Mirror Finish



FLAGPOLE
A
B
C
D
E
F
Exposed
Height		Overall
Height		Butt
Diameter		Sleeve
Diameter		Sleeve
Length		Foundation
Base		Foundation
Top		Base
Plate
20′22′5″8″24″24″30″12″
25′28′5″/6″8″/10″36″24″/30″34″12″
30′33′5″/6″8″/10″36″30″36″12″
35′38 ½’6″/7″10″42″30″36″14″
40′44′7″/8″10″/12″48″36″42″14″/16″
45′49 ½’8″/10″12″/15″48″36″42″16″/18″
50′55′8″/10″12″/15″60″42″48″16″/18″
60′66′10″/12″15″72″42″48″18″
70′77′12″15″84″48″60″20″
80′88′12″15″96″54″72″20″
90′99′12″15″108″60″72″24″
100′110′12″21″120″66″72″24″
Request Quote

Design – Engineering – Manufacturing

This web site has been developed as a guide to Architects, Dealers and all those seeking information on Flagpoles and Flagpole Products.
