Steel Flagpoles
MATERIAL
- ASTM A53 Type S Grade or Better Steel
STANDARD EQUIPMENT
- Spun Aluminum Ball
- Single Sheave Revolving Truck
- Solid Braid Nylon Halyard
- Stainless Steel Snap Hooks
- Neoprene Snap Covers
- 9″ Cast Metal Cleat w/ S.S. Screws
- Spun Metal Flash Collar
- Corrugated Steel Ground Sleeve
STANDARD FINISH
- Galvanized Finish Per ASTM A123, Followed By A Prime Coat & Two Finish Coats of High Gloss, High Build, Polyurethane Enamel
| Exposed Height | Overall Height | Diameter | Wall Thickness | Length | Ball Diameter | Sections | Flag Size | ||
| Butt | Top | Taper | Straight | ||||||
| 20′ | 22′ | 5-9/16″ | 3 ¼” | .188″ | 16 ½” | 5 ½” | 5″ | 1 | 4′ x 6′ |
| 25′ | 28′ | 5-9/16″ | 3 ¼” | .188″ | 16 ½” | 11′ | 5″ | 1 | 4′ x 6′ |
| 30′ | 33′ | 6 ⅝” | 3 ¼” | .188″ | 24′ | 9′ | 6″ | 1 | 5′ x 8′ |
| 35′ | 38 ½” | 6 ⅝” | 3 ¼” | .188″ | 24′ | 14 ½” | 6″ | 1 | 5′ x 8′ |
| 40′ | 44′ | 6 ⅝” | 3 ¼” | .280″ | 24′ | 20′ | 8″ | 2 | 6′ x 10′ |
| 50′ | 55′ | 8 ⅝” | 4″ | .322″ | 38 ½” | 16 ½” | 8″ | 2 | 8′ x 12′ |
| 60′ | 66′ | 8 ⅝” | 4″ | .322″ | 38 ½” | 27 ½” | 8″ | 2 | 10′ x 15′ |
| 70′ | 77′ | 10 ¾” | 4″ | .365″ | 48′ | 29′ | 10″ | 2 | 12′ x 18′ |
| 80′ | 88′ | 12 ¾” | 4″ | .375″ | 62 ½” | 25 ½” | 12″ | 3 | 15′ x 25′ |
| 90′ | 99′ | 12 ¾” | 4″ | .375″ | 62 ½” | 36 ½” | 14″ | 3 | 15′ x 25′ |
| 100′ | 110′ | 12 ¾” | 4″ | .500″ | 62 ½” | 47 ½” | 16″ | 3 | 15′ x 25′ |

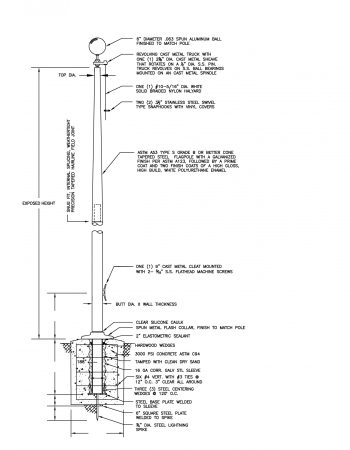

| FLAGPOLE | A | B | C | D | E | F |
|
| Exposed Height | Overall Height | Butt Diameter | Sleeve Diameter | Sleeve Length | Foundation Base | Foundation Top | Base Plate |
| 20′ | 22′ | 5″ | 8″ | 24″ | 24″ | 30″ | 12″ |
| 25′ | 28′ | 5″/6″ | 8″/10″ | 36″ | 24″/30″ | 34″ | 12″ |
| 30′ | 33′ | 5″/6″ | 8″/10″ | 36″ | 30″ | 36″ | 12″ |
| 35′ | 38 ½’ | 6″/7″ | 10″ | 42″ | 30″ | 36″ | 14″ |
| 40′ | 44′ | 7″/8″ | 10″/12″ | 48″ | 36″ | 42″ | 14″/16″ |
| 45′ | 49 ½’ | 8″/10″ | 12″/15″ | 48″ | 36″ | 42″ | 16″/18″ |
| 50′ | 55′ | 8″/10″ | 12″/15″ | 60″ | 42″ | 48″ | 16″/18″ |
| 60′ | 66′ | 10″/12″ | 15″ | 72″ | 42″ | 48″ | 18″ |
| 70′ | 77′ | 12″ | 15″ | 84″ | 48″ | 60″ | 20″ |
| 80′ | 88′ | 12″ | 15″ | 96″ | 54″ | 72″ | 20″ |
| 90′ | 99′ | 12″ | 15″ | 108″ | 60″ | 72″ | 24″ |
| 100′ | 110′ | 12″ | 21″ | 120″ | 66″ | 72″ | 24″ |
